- Package: SMD
- is_customized: Yes
- Model Number: W1209 temperature module
- Operating Temperature: 0-110
- Dissipation Power: 10A
- Supply Voltage: DC12v
- Application: Computer
- Condition: New
- Type: Logic ICs
- Origin: Mainland China
- 1: thermostat w1209
- 2: w1209 dc12v
- 3: W1209 LED Digital Thermostat
- 4: DC 12V Waterproof NTC Sensor
- 5: Thermometer Controller Switch Module
- 6: electronic sets
- 7: Diy kit electronics
- 8: for arduino
- 9: diy kit elctronic
- 10: soldering construction set
- 11: for arduino sensor kit
- 12: electronic circdiy solderinguit

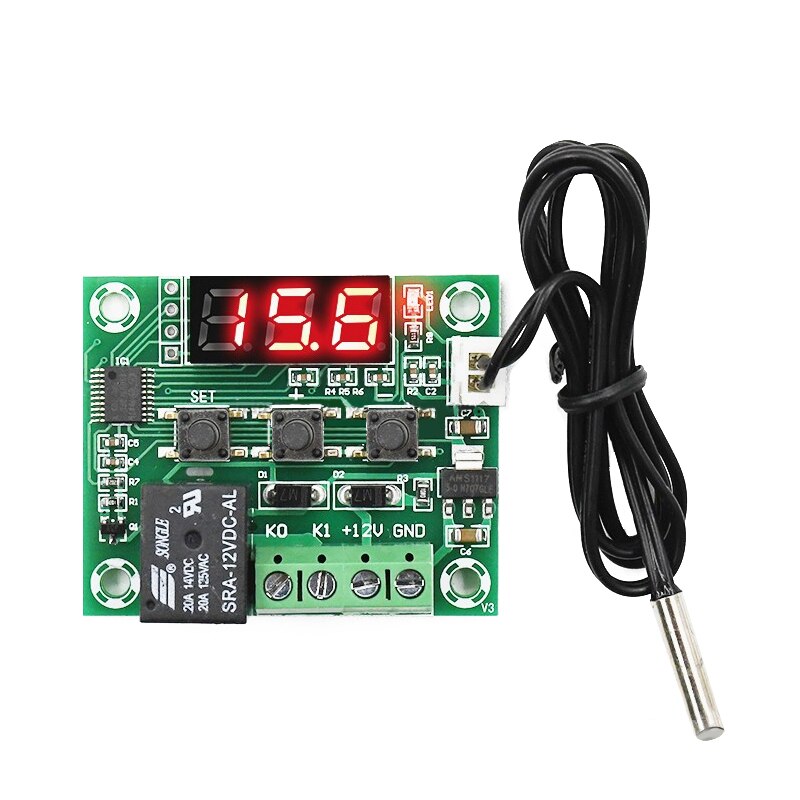

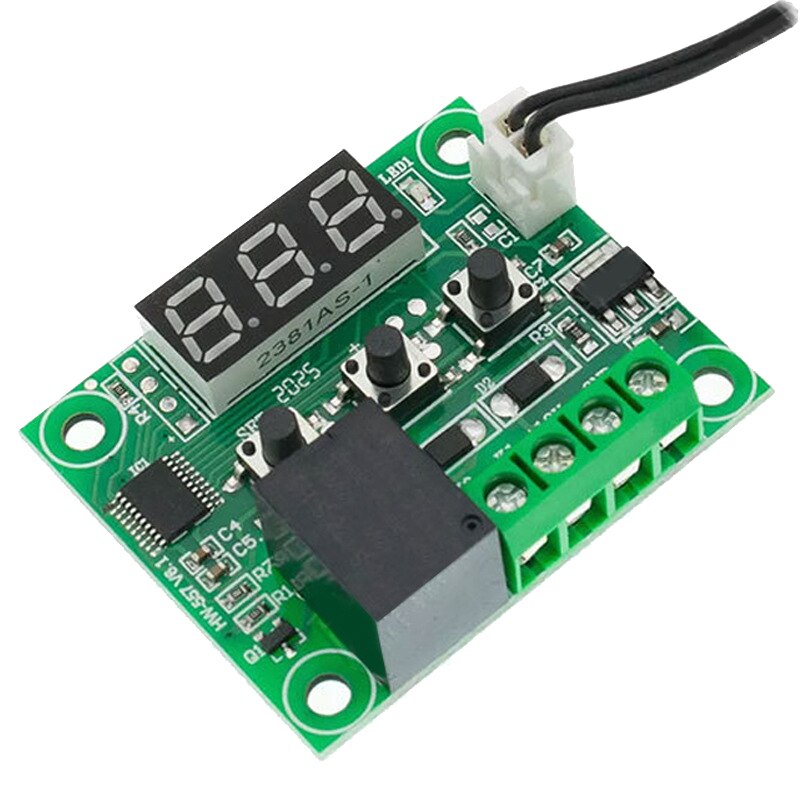

New XH-W1209 digital display high precision temperature controller
Description:
100% brand new and high quality
Quantity:1pcs
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Power consumption: Static current:<=35MA, Attract current:<=65MA
100% brand new and high quality
Quantity:1pcs
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Power consumption: Static current:<=35MA, Attract current:<=65MA
How to use:

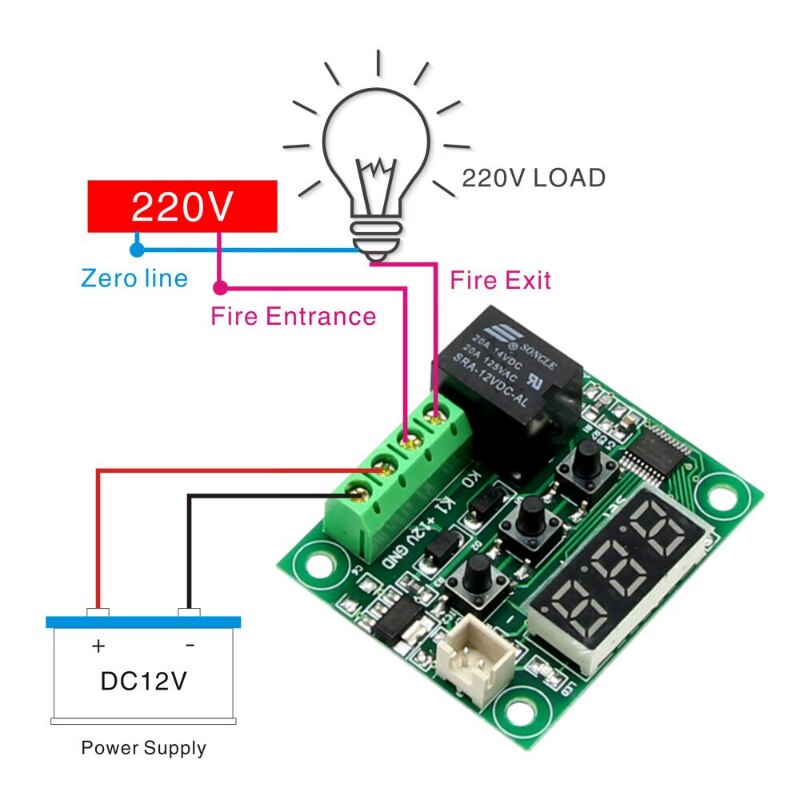

Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press – to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!

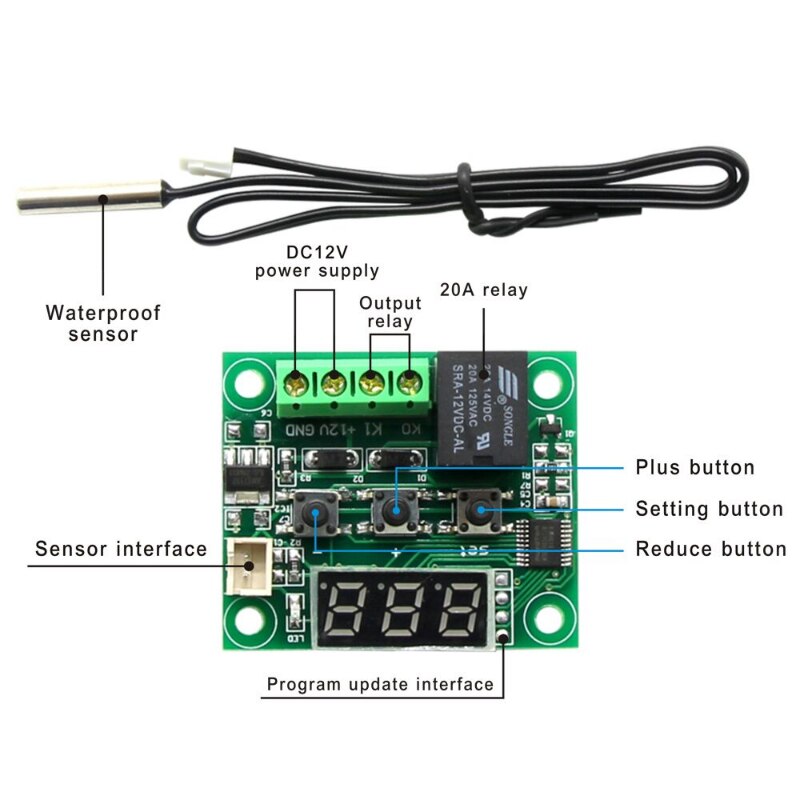

Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.
