- Package: SMD
- is_customized: Yes
- Model Number: W1209 temperature module
- Operating Temperature: 0-110
- Dissipation Power: 10A
- Supply Voltage: DC12v
- Application: Computer
- Condition: New
- Type: Logic ICs
- Origin: Mainland China
- keyword1: thermostat w1209
- keyword2: w1209 dc12v
- keyword3: W1209 LED Digital Thermostat
- keyword4: DC 12V Waterproof NTC Sensor
- keyword5: Thermometer Controller Switch Module
- keyword6: electronic sets
- keyword7: Diy kit electronics
- keyword8: for arduino
- keyword9: diy kit elctronic
- keyword10: soldering construction set
- keyword11: for arduino sensor kit
- keyword12: electronic circdiy solderinguit

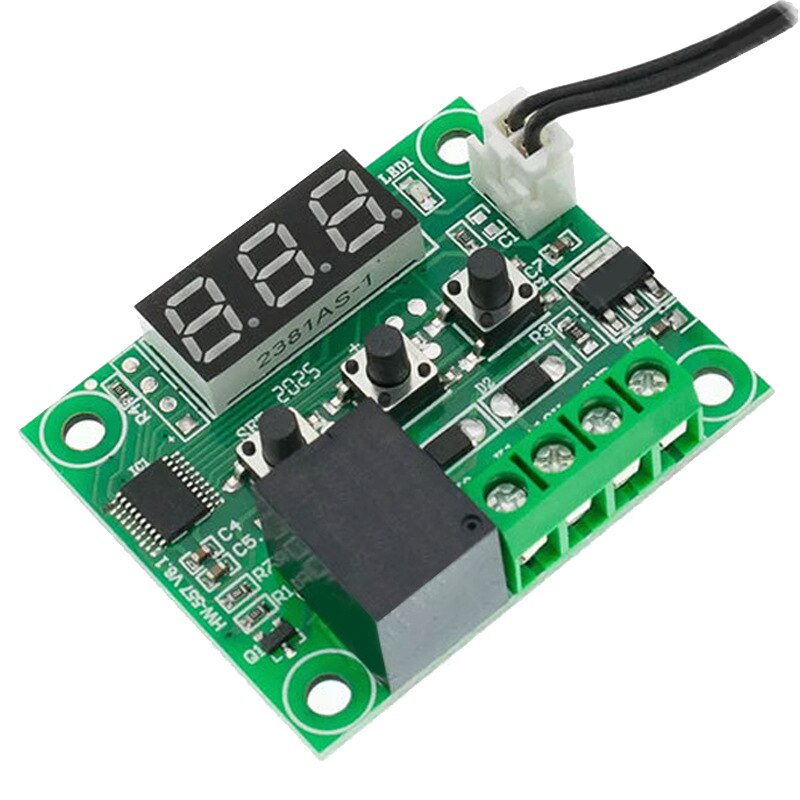

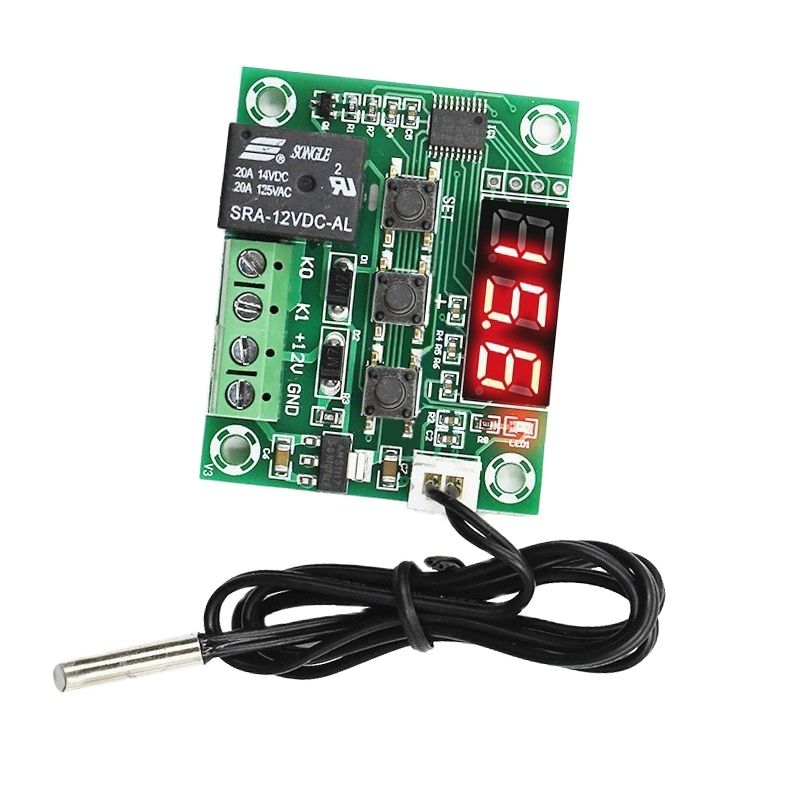

New XH-W1209 digital display high precision temperature controller
Description:
100% brand new and high quality
Quantity:1pcs
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Power consumption: Static current:<=35MA, Attract current:<=65MA How to use:Â
Connect the power supply and the load, you can supply to the controller,Â
Indicator: Off The relay is switched off, Always indicate the relay is closed.Â
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.
100% brand new and high quality
Quantity:1pcs
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Input Power: DC12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output: 1 Channel relay output, capacity = 10A
Environmental requirements: -10 ~ 60 degree Humidity 20% -85%
Size: 48 (L) * 40 (W) * 14 (D) mm
Power consumption: Static current:<=35MA, Attract current:<=65MA How to use:Â

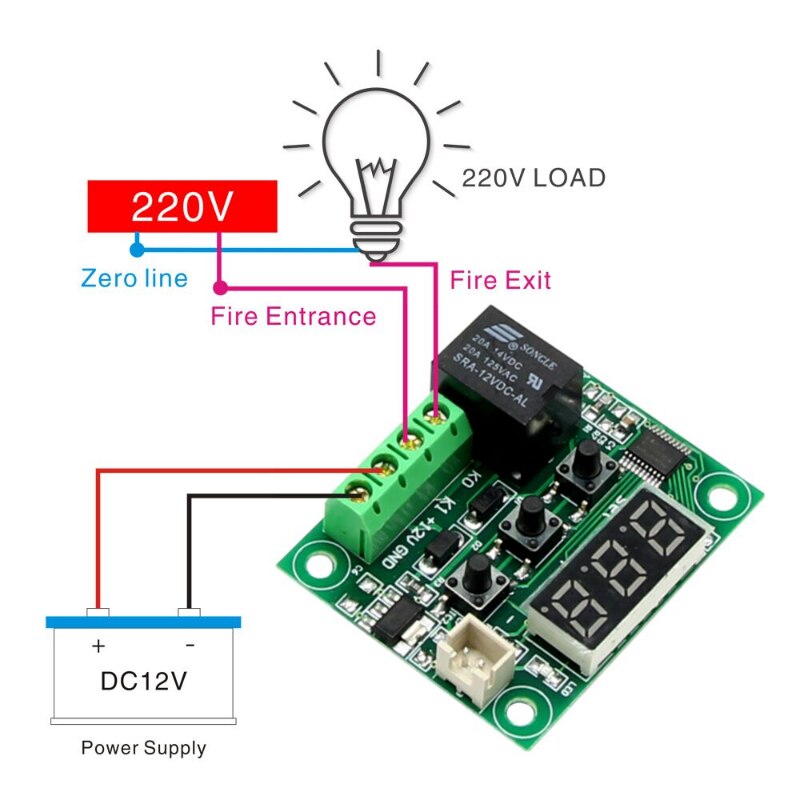

Connect the power supply and the load, you can supply to the controller,Â
Is displayed as a measured temperature,Â
Press the SET button, the display flashes the temperature,Â
Press – to set the desired temperature,Â
After setting press SET to confirm return,Â
The controller automatically performs the relay by setting off!Â

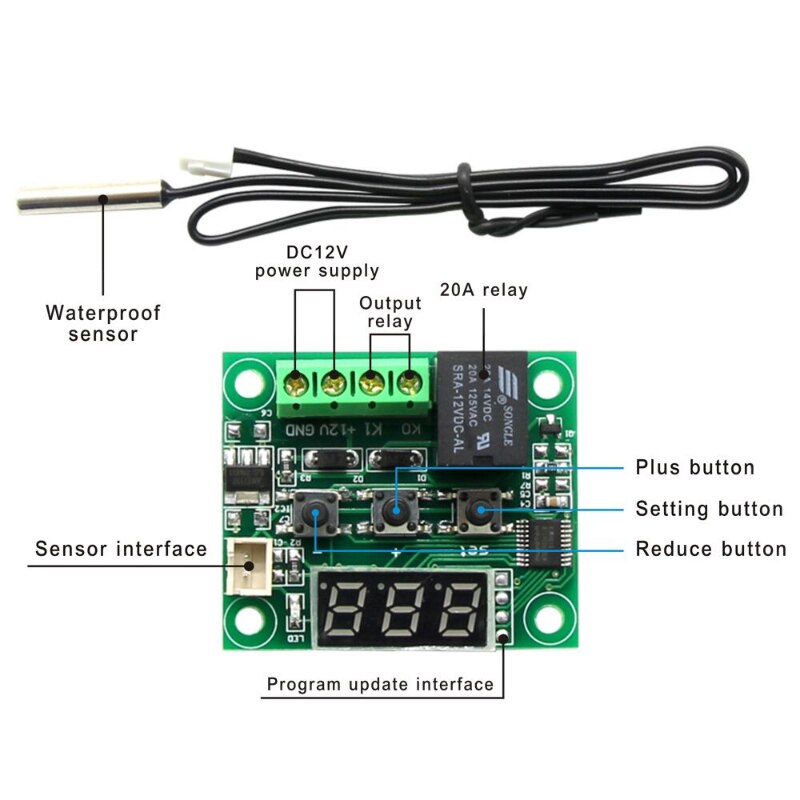

Lights, LED status descriptions:Â
Indicator: Off The relay is switched off, Always indicate the relay is closed.Â
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.
